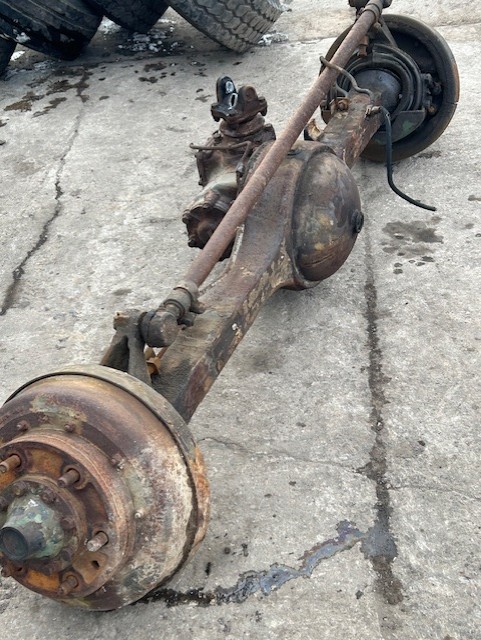

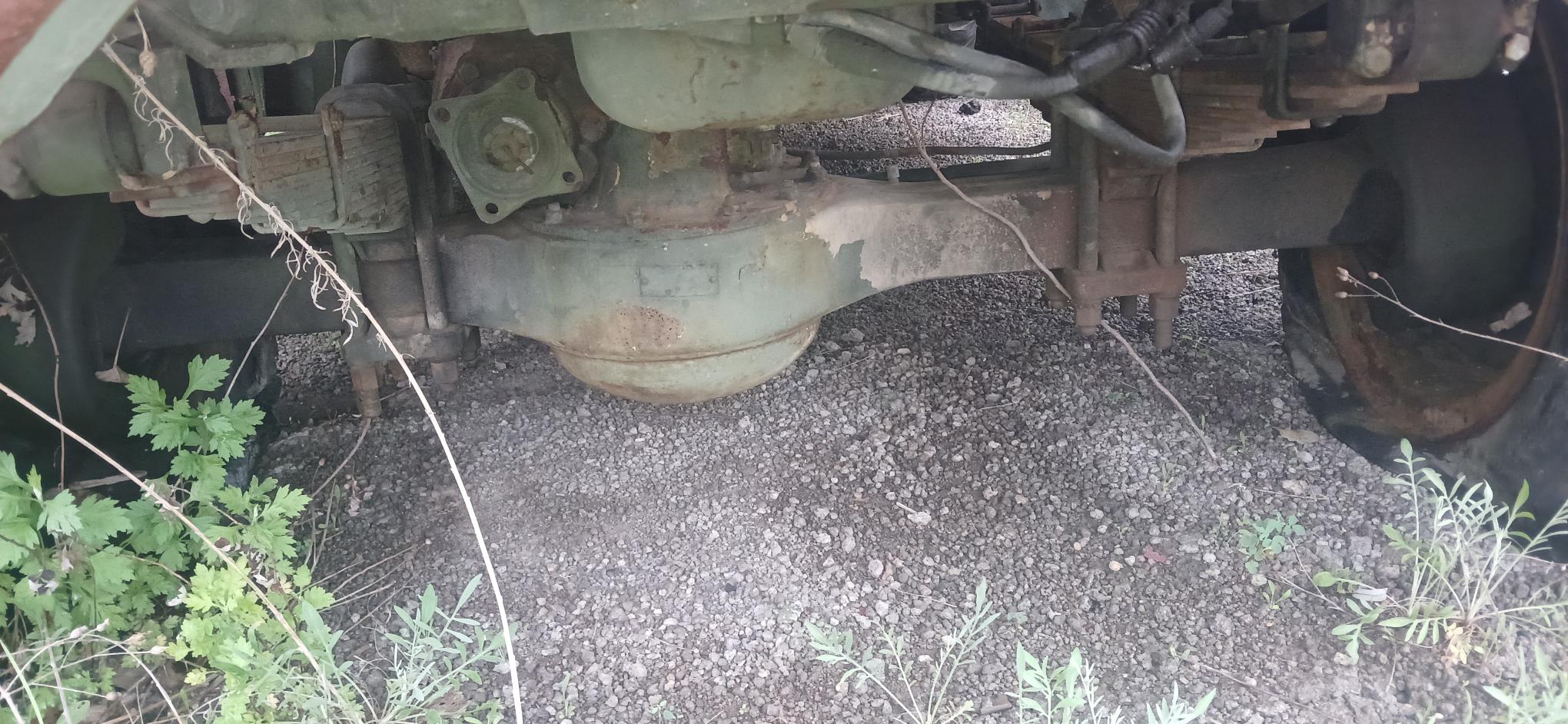

2 1/2 Ton Front Axle
$850.00
| Stock Number | frt-axle |
| Design | Top-loading “center chunk” that allows the driveshaft to sit higher. This gives the axle housing a smooth bottom profile, providing significantly better clearance over rocks and obstacles. |
| Weight | Approximately 640 lbs. |
| Axle Shafts | Massive, thick shafts (often 1.62″ to 1.67″ diameter depending on spline count) designed to withstand extreme torque |
| Steering | Full-floating setup equipped with large steering knuckles and protected by rubber boots (often visually recognized by bright red boots on rebuilt models |
| Brakes | Factory-equipped with massive air-actuated drum brakes, though many civilian builders convert these to disc brakes. |
A 2 1/2-ton military front axle—most commonly the legendary top-loading Rockwell F-106 or similar used in the M35 series “Deuce and a Half”—is highly sought after for extreme-duty off-road and rock-crawler builds. Weighing roughly 640 lbs, it is renowned for its incredible durability and portal-like clearance.
Rear Axle available $400.00 .
